Polarizing splitter
product description
Polarizing splitter
Base material: fused silica, K9 glass
Surface type: <λ / 10 @ 632.8nm
Finish: 40-20
Chamfer: 0.5mm, 45 °
Coating: Multi-layer dielectric film deposited by electron beam
Incidence angle: 56.5 ° ± 3 °
Clear aperture:> 85% diameter

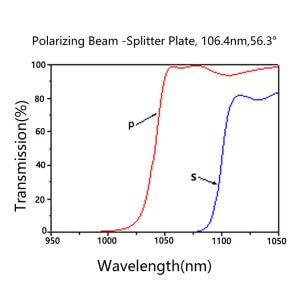

Polarization transmittance: Tp≥96%; Ts≤1%
Extinction ratio: p: Ts> 100: 1
Band range: visible area, near infrared
Applications :
Product Advantage :
Product Parameters :
|
diameter(nm) |
wavelength(nm) |
|
20/25.4/30 |
780 |
|
20/25.4/30 |
1064 |
|
20/25.4/30 |
1310 |
|
20/25.4/30 |
1550 |
