Dual wavelength antireflection coating
product description
Dual wavelength antireflection coating
Base material: Fused quartz, K9 glass
Face shape：:<λ/10 @ 632.8nm
Degree of finish：40-20
Chamfer：0.5mm, 45°
Coating：Electron beam deposition multilayer dielectric film（coating）
Angle of incidence：0°
Clear aperture :> 85% diameter
Applications :
Product Advantage :
Product Parameters :
|

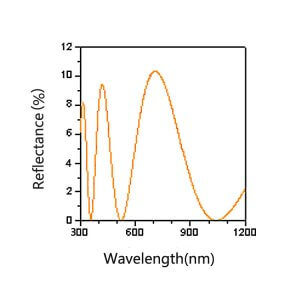

Wavelength(nm) |
residual reflectance |
|
166/532 |
0.5%/0.3% |
|
351/1053 |
0.5%/0.3% |
|
373/745 |
0.5%/0.3% |
|
532/1064 |
0.5%/0.3% |
|
1064/1535 |
0.5%/0.3% |
|
792/2060 |
0.5%/0.3% |
