Dove prism

Crystal Material: Lanthanum tribromide LaBr3; Calcium fluoride (CaF2); Barium fluoride(BaF2); Magnesium fluoride (MgF2); Lithium fluoride(LiF); Silicon material(Si); Germanium material（Ge）; NaI:TI; Lithium Niobate; Zinc Selenide(ZnSe); Zinc Sulfide(ZnS); Sapphire; Quartz

Windows: Wafer; Witness samples; FTIR windows; UV.VIS. IR windows; customized windows

Laser Lenses: Laser output Coupler; Laser Protection Window; Beam Combine; Laser scanning mirror; Laser Mirror; Focusing Lens; Laser Window

Prism: Wedge Prisms; Corner cube prism; Dove prisms; Penta prisms; Right angle prisms

Coating: Longpass Filter; DLC+BBAR; BBAR; Anti-reflective; Mirror; Beamsplitter; IR/DLC; Metallization; Band pass filter

product description

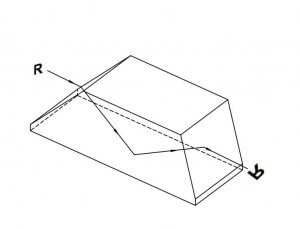

A Dove prism is a type of reflective prism which is used to invert an image. Dove prisms are shaped from a truncated right-angle prism.


													Get Price

													Contact

													Download

parameter	Data
Diameter(mm)	1.5-300
Diameter (mm)	+/-0.02
Thickness Tolerance(mm)	0=/0.02
Centring Error(Arc minute)	<3
Surface Quality	20-10
Surface Figure	λ/10@633nm
Clear Aperture	More than 90%
Materials	BK7 optical glass and fused silica etc crystal
